Stop worrying about your tower site(s) and remote equipment stations.

Know exactly what is going on as soon as it happens.


Tower site on top of a mountain? We've got something for that...

Tower-Tech™ | AMAS™ Products

$500.00

SKU: 360-220-3000

Four expansion modules available. Expand & customize your solution to best fit your needs




INPUT MODULE
  • 8 Additional Opto-Isolated Input Lines
  • Each input can be individually named (via configuration platform)
  • Can alarm for high and low transitions
  • Each input line can individually or collectively latch system output lines
  • Front panel indicator lights when each line is active

OR


OUTPUT MODULE
  • 8 Additional Opto-Isolated, High-Current, Latched Output Lines
  • Each output can be individually named (via configuration platform)
  • Each output lines has its own isolated ground
  • Front panel indicator lights when each line is active

OR

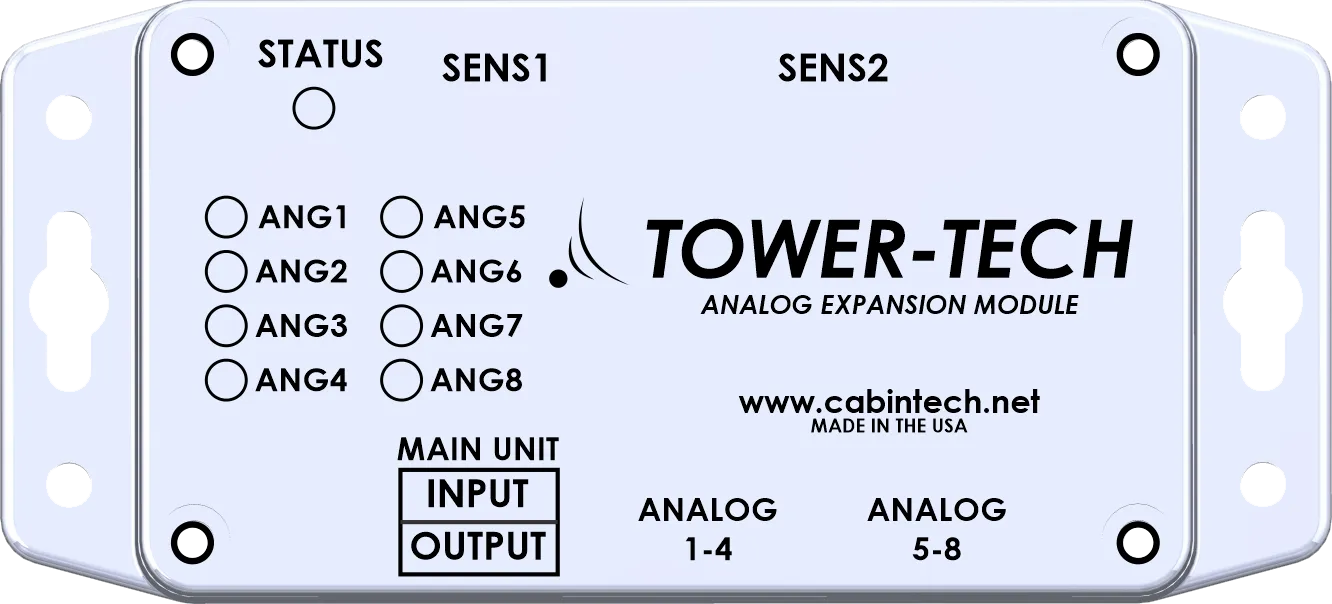

ANALOG MODULE
  • 8 Additional Analog Channels (0 to 2.5V or 0 to 100V <default> input - internally switch selectable)
  • -- 12-bit resolution
  • -- 4 to 20mA inputs
  • -- externally powered smart sensors


  • Each input/output/analog can be individually named (via configuration platform)
  • Front panel indicator lights when each line/channel is active

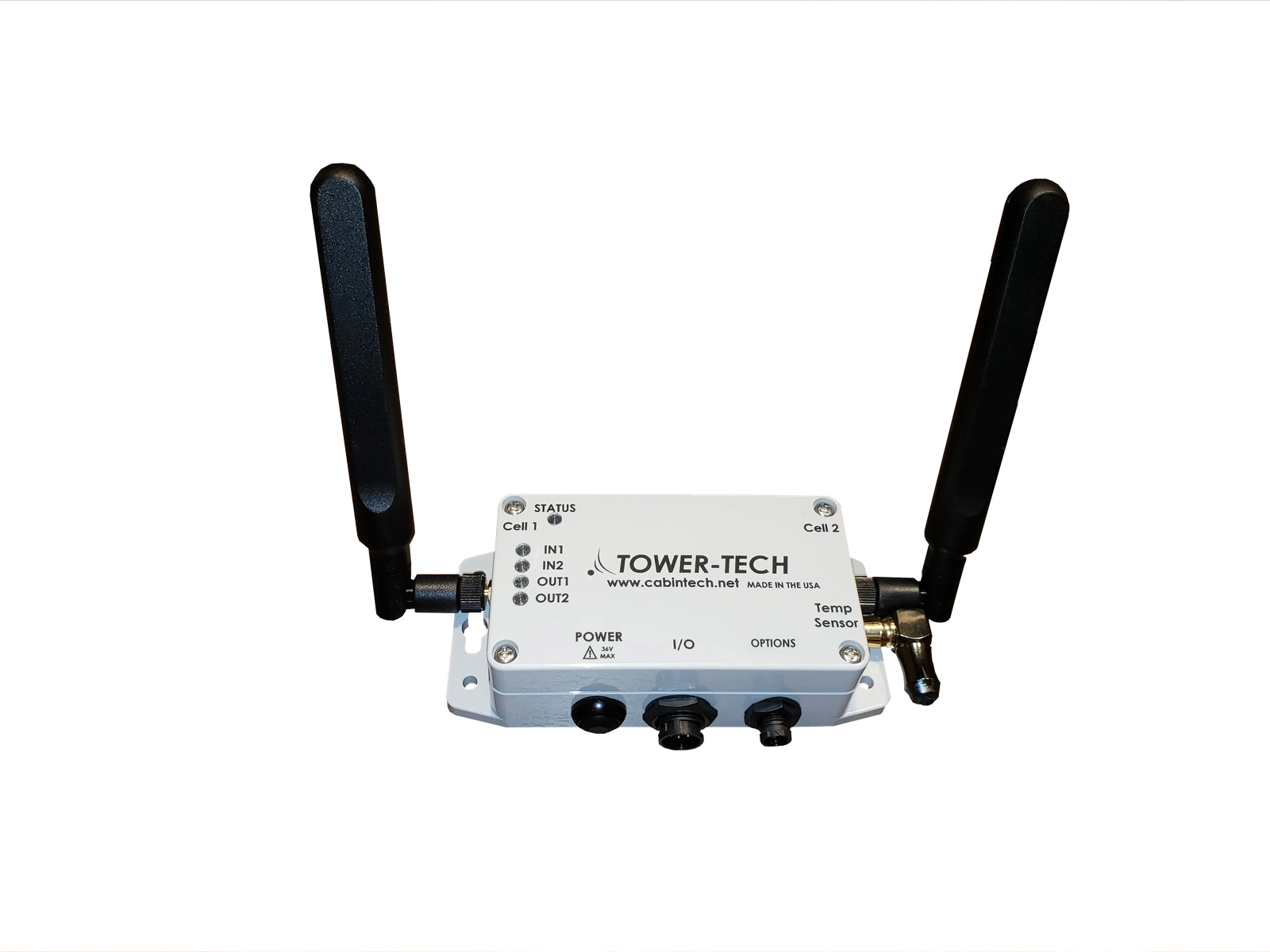

Base unit provides:

  • 2 Opto-Isolated Input Lines
  • 2 Opto-Isolated, High-Current, Latched Output Lines
  • 2 Analog Channels
  • Need more? See the expansion modules below!

Access and manage your account through our web management portal or through the Android or iOS app

Quickly and easily view and edit:

  • High/Low data over 30 day period
  • High/Low alarm trigger levels
  • Current Data Readings
